esphome:
  name: airqualitymonitor
  friendly_name: Senseair CO2 and PMSX003

esp32:
  board: esp32dev
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "...."

ota:
  platform: esphome
  password: "..."

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "Senseair Fallback Hotspot"
    password: "...."

captive_portal:
# UART (Universal Asynchronous Receiver-Transmitter) configurations for serial communication with sensors

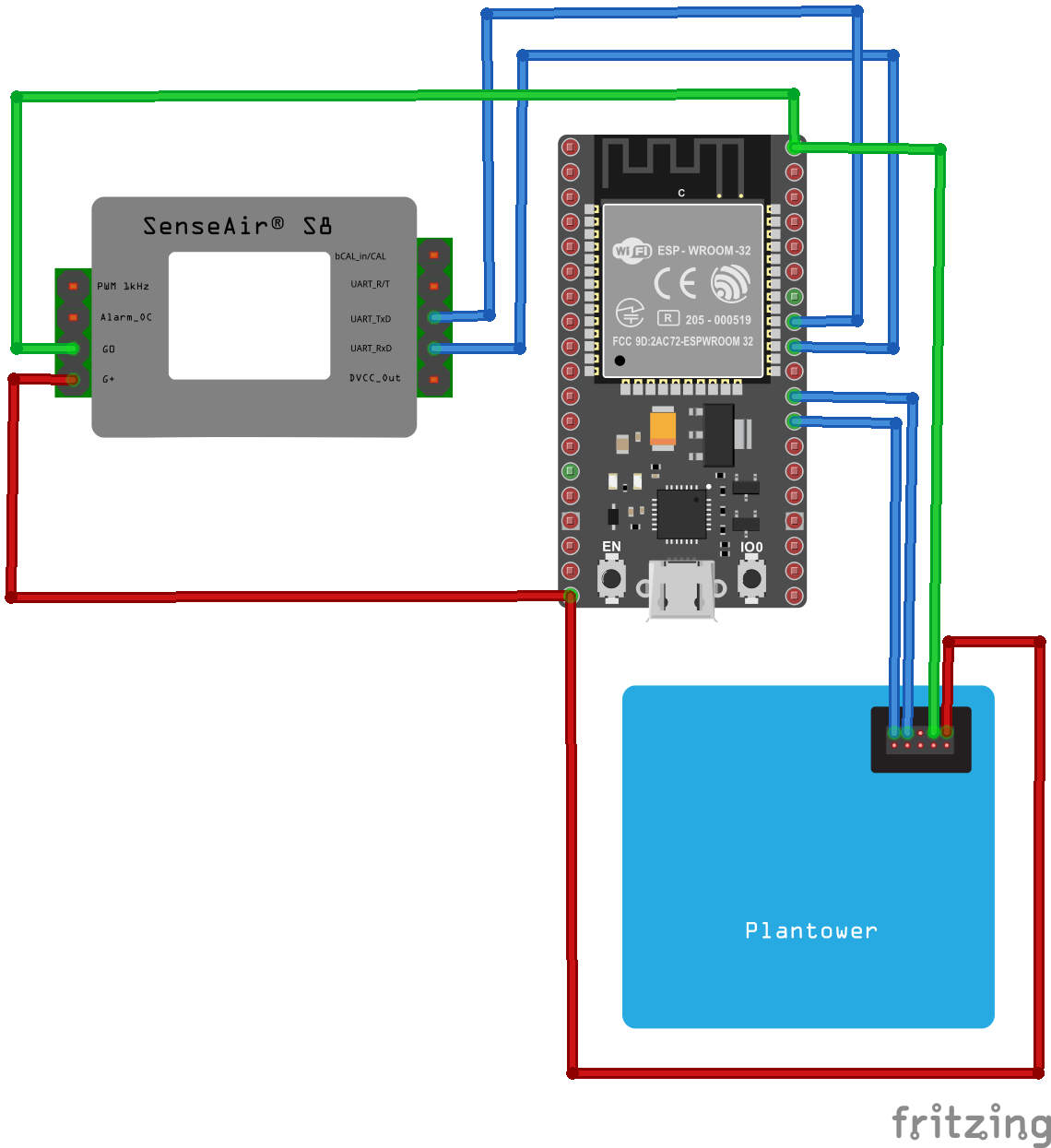

uart:
  # UART1 Configuration for PMSA003 particulate matter sensor
  - id: uart_id1 # Unique identifier for this UART instance
    tx_pin: GPIO17 # Transmit pin for UART1
    rx_pin: GPIO16 # Receive pin for UART1
    baud_rate: 9600 # Communication speed for PMSA003

  # UART2 Configuration for SenseAir S8 CO2 sensor
  - id: uart_id2 # Unique identifier for this UART instance
    tx_pin: GPIO18 # Transmit pin for UART2
    rx_pin: GPIO19 # Receive pin for UART2
    baud_rate: 9600 # Communication speed for SenseAir S8

# Sensor configurations
sensor:
  - platform: pmsx003
    type: PMSx003
    uart_id: uart_id1
    pm_1_0:
      name: "Particulate Matter <1.0µm Concentration"
    pm_2_5:
      name: "Particulate Matter <2.5µm Concentration"
    pm_10_0:
      name: "Particulate Matter <10.0µm Concentration"
    update_interval: 90s

# SenseAir S8 Sensor Configuration
  - platform: senseair
    id: my_senseair_id
    uart_id: uart_id2
    update_interval: 60s
    co2:
      name: "SenseAir CO2"
      id: senseair_co2
      filters:
        - lambda: |-
            if (x <= 0 || x > 5000) {
              ESP_LOGW("senseair", "Invalid CO2 reading detected: %.0f. Keeping previous value.", x); // Use // for comments in C++ lambda
              return id(senseair_co2).state; // Return the last known good state
            }
            return x; // Return the valid reading

# Switch configurations for controlling sensor features or device status
switch:
  # Template switch to track the ABC (Automatic Baseline Correction) status of the SenseAir S8
  - platform: template
    name: "ABC Status"
    id: abc_status
    restore_mode: RESTORE_DEFAULT_OFF # Restores to OFF on reboot if no previous state is known
    internal: true # Makes this switch internal to ESPHome, not exposed to Home Assistant directly
    optimistic: true # Assumes the action succeeds immediately without waiting for confirmation

  # Template switch to trigger a background calibration for the CO2 sensor
  - platform: template
    name: "Calibrate CO2 Sensor"
    id: calibrate_co2_sensor
    optimistic: true
    turn_on_action:
      - senseair.background_calibration: my_senseair_id # Calls the SenseAir background calibration service
      - delay: 1s # Short delay to allow the sensor to process the command
      - logger.log:
          format: "Calibration triggered. Last CO2 reading: %.1f ppm"
          args: ['id(senseair_co2).state'] # Logs the current CO2 reading for context

  # Template switch to get and log the current ABC status from the SenseAir S8
  - platform: template
    name: "Get ABC Status"
    turn_on_action:
      - senseair.abc_get_period: my_senseair_id # Requests the ABC period from the sensor
      - delay: 1s # Short delay for sensor response
      - logger.log:
          format: "ABC Status: %s" # Logs whether ABC is ON or OFF based on the internal tracker
          args:
            - !lambda 'id(abc_status).state ? "ON" : "OFF"'

  # Template switch to enable ABC (Automatic Baseline Correction) on the CO2 sensor
  - platform: template
    name: "ABC Enable"
    id: abc_enable
    optimistic: true
    turn_on_action:
      - senseair.abc_enable: my_senseair_id # Sends command to enable ABC
      - delay: 1s # Short delay
      - switch.turn_on: abc_status # Updates the internal ABC status tracker
    # Optional: Add a turn_off_action to ensure consistency if this switch is toggled off
    turn_off_action:
      - switch.turn_off: abc_status

  # Template switch to disable ABC (Automatic Baseline Correction) on the CO2 sensor
  - platform: template
    name: "ABC Disable"
    id: abc_disable
    optimistic: true
    turn_on_action:
      - senseair.abc_disable: my_senseair_id # Sends command to disable ABC
      - delay: 1s # Short delay
      - switch.turn_off: abc_status # Updates the internal ABC status tracker
    # Optional: Add a turn_off_action to ensure consistency if this switch is toggled off
    turn_off_action:
      - switch.turn_on: abc_status
